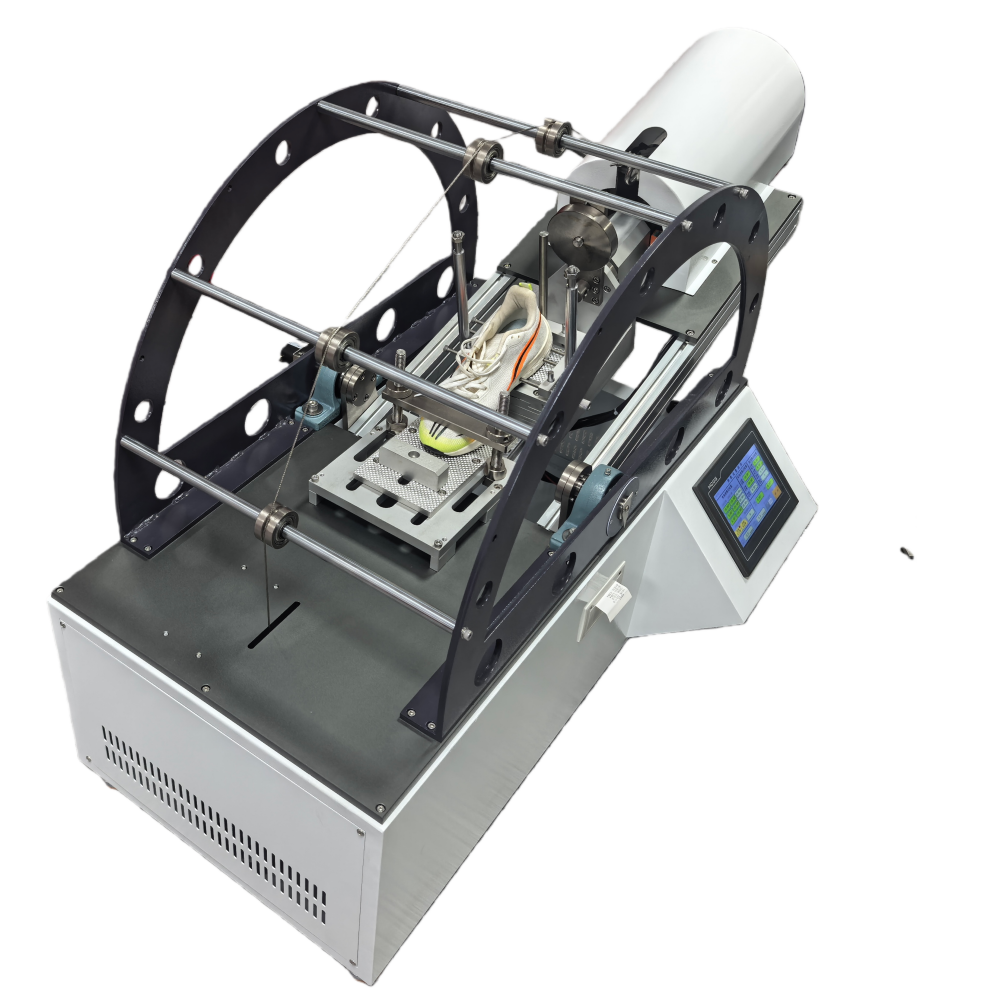

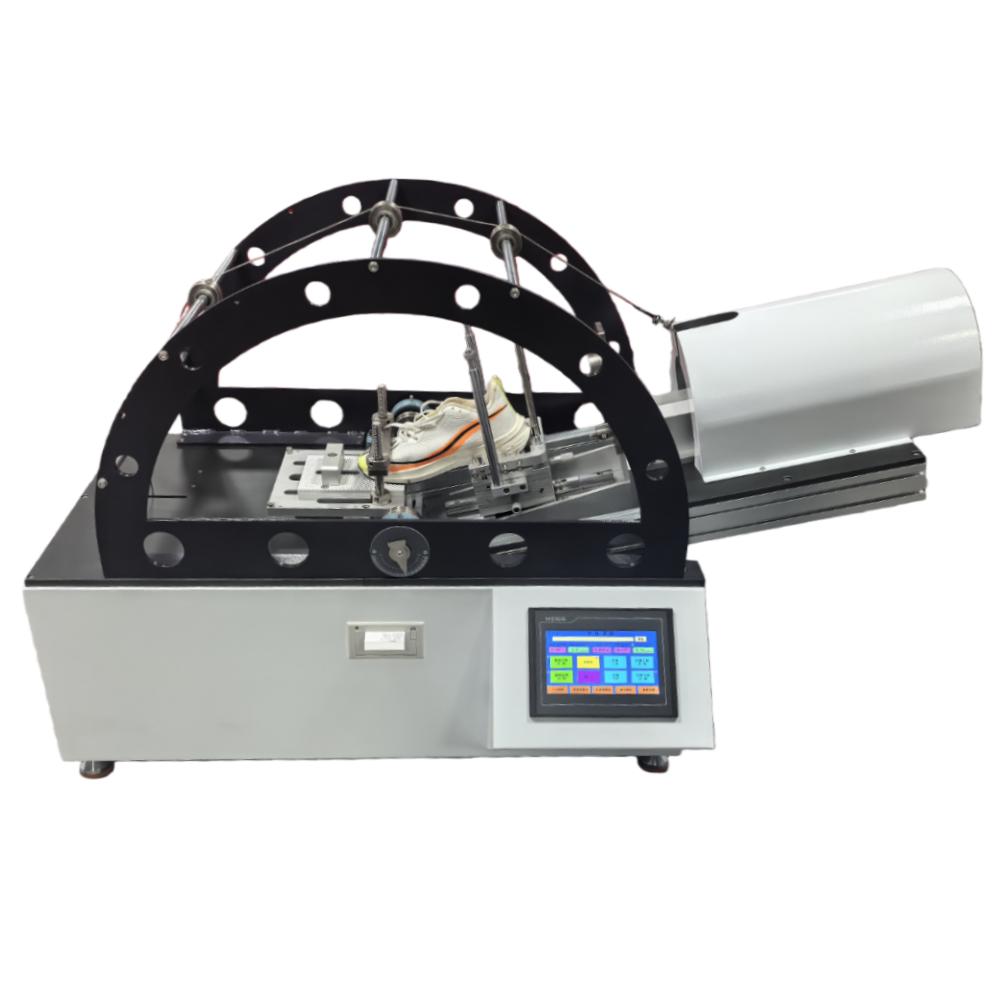

XHF-156A Shoe Torsional Stiffness Tester

Product Description of XHF-156A Shoe Torsional Stiffness Tester

XHF-156A Shoe Torsional Stiffness Tester is used to fix the toe of the sample shoe, lift the heel of the shoe along the bending line of the sole at a certain angle, and make relative motion around the longitudinal axis at a certain speed to measure the maximum torque required to rotate inward and outward to the set angle.

Test Standards of XHF-156A Shoe Torsional Stiffness Tester

SATRA TM 256, GB/T 32024

Product Features of XHF-156A Shoe Torsional Stiffness Tester

Technical Parameter of XHF-156A Shoe Torsional Stiffness Tester

Capacity	50N．m
Resolution	0.01 N.m
Lift Angle	25±0.5°（0~40° Settable）
Torsion Angle	0-±40° (Settable)
Torsion Angle Resolution	0.1°
Speed	0-5rad/min (Adjustable)
Dimension	1360×440×900mm
Weight	65Kgs
Power	220V, 50/60Hz
Standard Configuration	Machine, ISO 17025 lab certificate
