XHF-93A Blade Cut Resistance Tester

Product Description of XHF-93A Blade Cut Resistance Tester

Blade Cut Resistance Tester is used to determine the protective capability the safety glove against cutting.

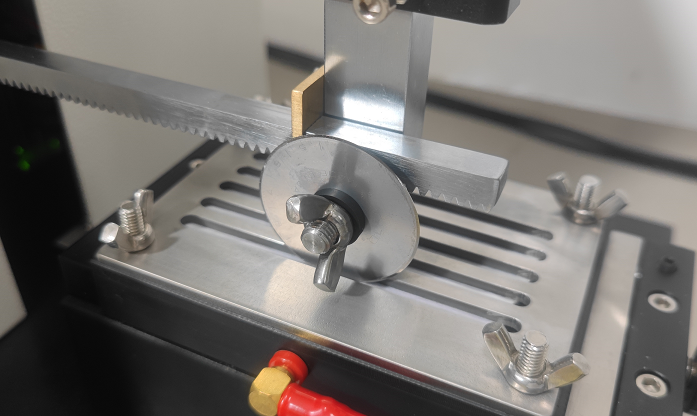

Adriving rotation round blade under a specified load cuts the glove held by the fixture of tester to and fro. After test, compare it with its original statuses toget the result.

Test Standards of XHF-93A Blade Cut Resistance Tester

ISO 20344, EN388-2016-6.2

Product Features of XHF-93A Blade Cut Resistance Tester

Technical Parameter of XHF-93A Blade Cut Resistance Tester

Load on blade	5+/-0.05N
max.cutting speed	8+/-2cm/s (adjustable)
Horizental moveing distance	50mm
Blade Dimension	Diameter: 45+/-0.5mm, Thickness: 0.3+/-0.03mm
Blade Angle	30 to 35º;
Blade Hardness	700-720V
Counter	1-99999,Automatic Stop
Specimen holders	2 Pcs
Dimension	550×400×250mm
Weight	40Kgs
