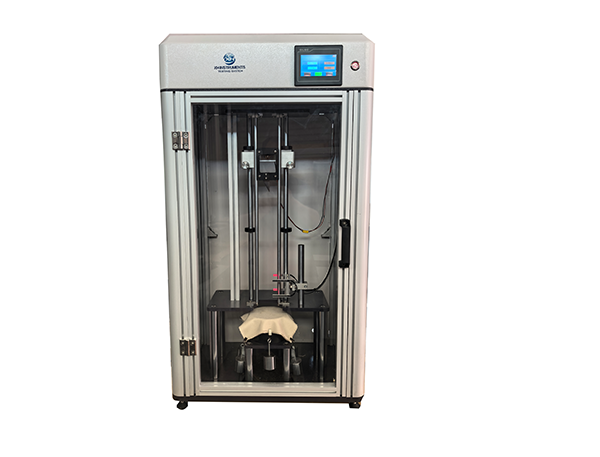

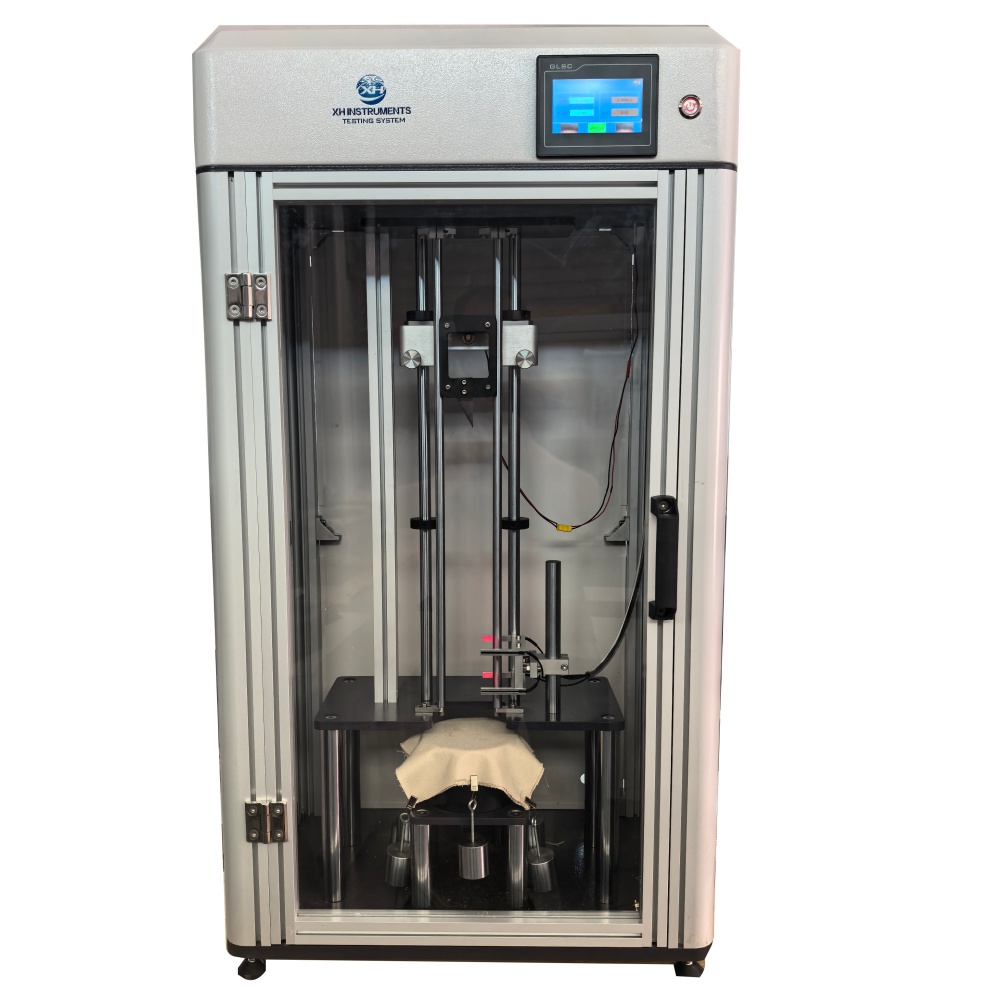

XHF-93C Impact Cut Resistance Tester

Product Description of XHF-93C Impact Cut Resistance Tester

It is used for do impact cut resistance of motorcycle riders protective clothing.

Test Standards of XHF-93C Impact Cut Resistance Tester

EN 13595-4, EN 13634

Product Features of XHF-93C Impact Cut Resistance Tester

Technical Parameter of XHF-93C Impact Cut Resistance Tester

Mass of blade holding block (include blade)	110±2g
The length for blade out of clamp	40mm
Plastic specimen supporting rack block	Diameter: 150mm, Thickness:80mm, Center Hole: width:5mm, length:30mm
Test height	200mm (speed: 2±0.2M/S), 400mn ( 2.8±0.2M/S)
Specimen tension weights	8* 400±10g
Specimen size	220mmx220mm
Lifting	Manual lift
Release system	Magnet manual release
