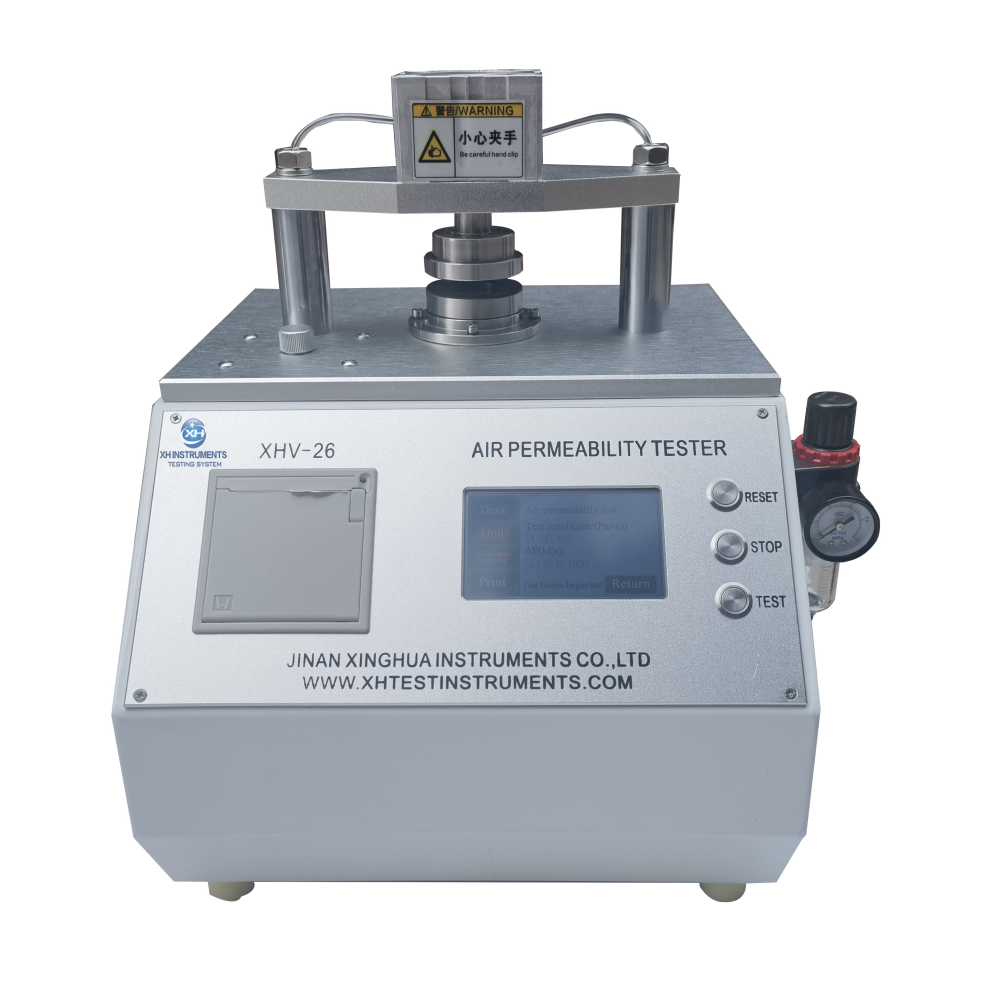

XHV-26M Air Permeability Tester

Product Description of XHV-26M Air Permeability Tester

XHV-26M Air Permeability Tester adopt high technology to measure paper air permeability of paper, cardboard or other sheet objects. it meet schopper method, bentsen method and gurley method.

Test Standards of XHV-26M Air Permeability Tester

ISO 5636-2, ISO 5636-3, ISO 5636-5. ISO 2965, Tappi 460om-02

Product Features of XHV-26M Air Permeability Tester

1. Adopt important USA chip and high precision sensor to make test accurately.

2. The whole test is fully automatic, fast and accurate.

3. The instrument is controlled by micro-computer, with touch screen operation which is convenient for customers to operate or view test data.

4. Micro-printer, fast and clear printing, have statistical function.

Technical Parameter of XHV-26M Air Permeability Tester

Measurement range	0.2～2500mL/min, 0.002～65μm/(Pa•s), 3-60000(s/100ml)
Unit	s/100ml, μm/(Pa•s) ,ml/min
Resolution	0.001μm/Pa•s，0.001ml/min, 0.01s(Gurely)
Flow Accuracy	≤0.5%
Pressure Difference Accuracy	≤0.5%
Test Area	6.42cm2 (10 cm2 is optional）
Pressure Difference	0.2kPa-4 kPa (adjustable)
Dimension	420mmx340mmx520mm
Weight	28Kgs
Power Supply	AC 220V, 50/60Hz
Standard Configuration	Machine , paper papers
Optional	Air Compressor
