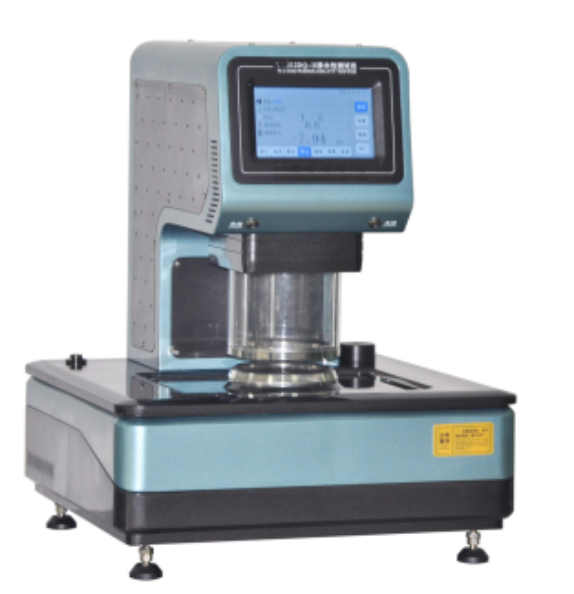

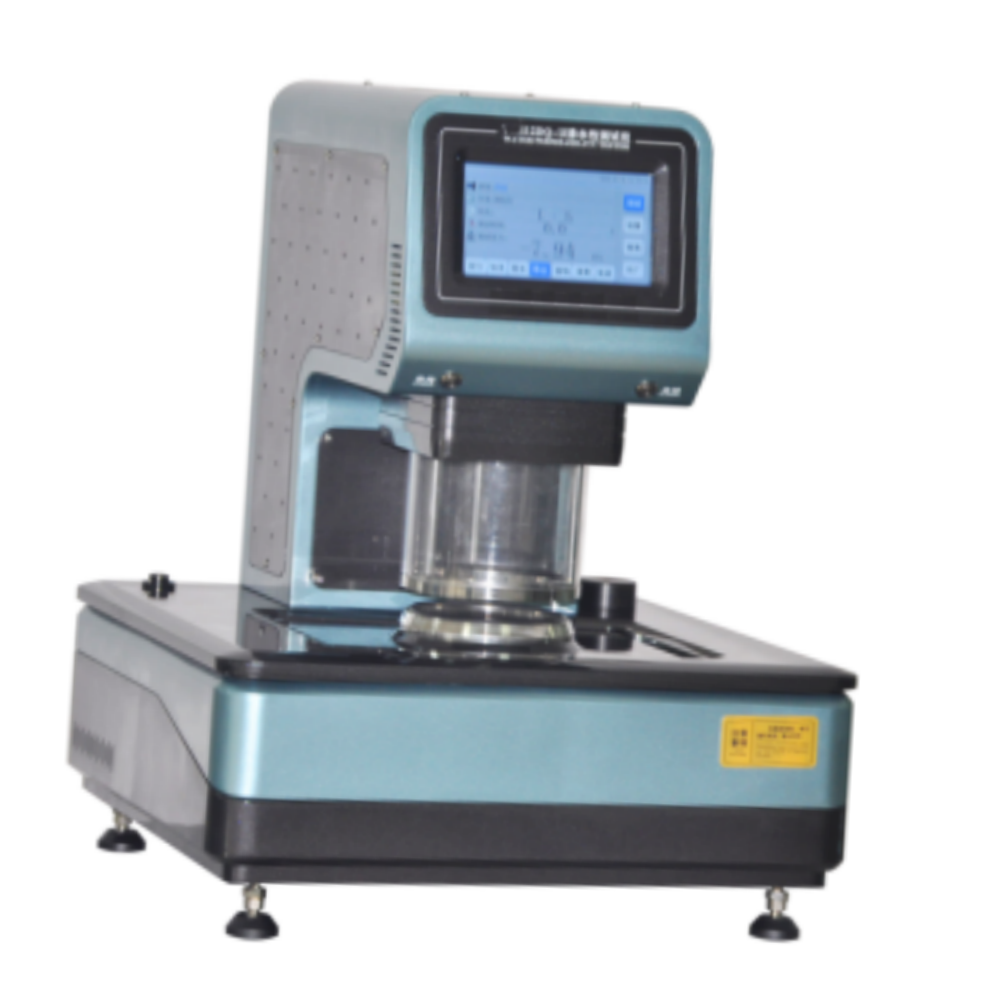

XHF-07F Hydrostatic Tester is used to measures the resistance of of fabrics to water passage at a constant hydrostatic pressure.
AATCC 127, ISO 811, ISO 1420, GB/T4744, DIN 53886, JIS L1092
1. High pressure pneumatic clamping, adjustable clamping tightness, can support testing of various products with different sizes and ranges;
2. The sample clamping starting device is equipped with a safety protection design, which better ensures the safety of the operator;
3. Equipped with an imported water pumping and pressurization system, the pressurization speed is set digitally and can be adjusted over a wide range, suitable for testing various materials;
4. Three color adjustable light source, suitable for various types of products, making observation more intuitive;
5. Color touch screen display and operation, easy to use, high-end and atmospheric;
6. After clamping, the equipment automatically starts testing without the need for multiple personnel operations, reducing the number of testing steps and lowering the intensity of personnel operations;
7. Configure a handheld rapid recording device, allowing operators to quickly record test results while observing sample testing;
8. The test is equipped with a transparent protective cover above, which can observe the test status in real time and prevent the liquid from splashing out when the sample ruptures;
9. Spray painted shell, metal panel, metal buttons, special aluminum profile test bench, durable and long-lasting. The body undergoes anti-corrosion treatment to ensure that the equipment is corrosion-resistant and will not rust during its service life.
10. High quality stainless steel fixtures, equipped with imported gaskets, easy to tighten without damaging the sample.
11. 32-bit microcontroller, high-precision pressure sensor, with automatic pressure value tracking and measurement function.
Control | Touch Screen+PC |
Measuring Range | 500Kpa |
Accuracy | ≤±0.5%F.S |
Resolution | 0.01Kpa |
Elevation Speed | 0.5Kpa/min-80Kpa/min (adjustable) |
Sample Testing Area | 100cm2 |
Constant Pressure Hold Time | 0-99999.9s; timing accuracy: ±0.1s |
Dimension | 400 mm × 450 mm × 500 mm |
Weight | 50Kgs |
Power Supply | 220V, 50Hz,1PH |
Standard Configuration | Machine, PC software |
Optional Configuration | Air compressor |
