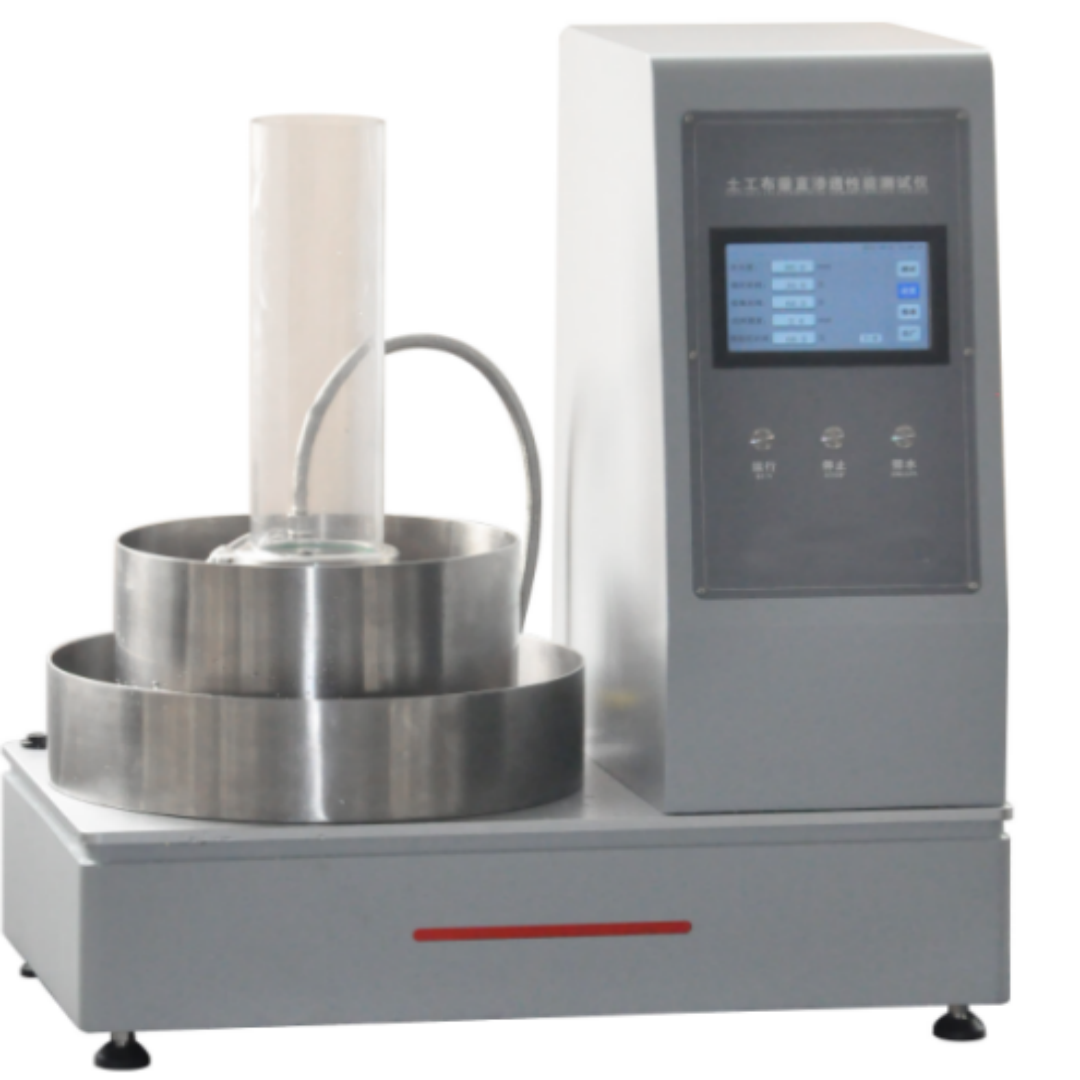

XHF-07QST Water Permeability Tester using for vertical permeability testing of Geotextiles and composite materials
GB/T15789, JTG E50, SL/T235, ISO11058, ASTM D4716
1. Equipped with a large color touchscreen display for operation, it is aesthetically pleasing and convenient, comparable to a smartphone.
2. The core control component adopts STMicroelectronics' 32-bit multifunctional motherboard.
3. The testing time can be adjusted according to the testing requirements.
4. Automatic tracking and detection of test water temperature, and automatic participation in calculation and compensation of test results.
5. The test head difference can be set, and the equipment automatically adjusts to the set head difference.
6. The device automatically monitors the water flow rate, and the flow panel displays it in real-time for easy viewing.
7. The test results are automatically generated and can be viewed directly on the report interface.
8. PC software Connection
Max DlF of Head Pressure | 300mm |
Resolution of Water Height | 1mm |
Inner Diameter of Gripper | 51±0.1mm |
Thickness of Sample | ≤20mm |
Time Controller | 0-99.99s |
Measuring Cylinder | 1000mL (Division: 10ml） |
Thermometer Scope | 0～50℃(Accuracy: 0.1℃) |
Dimension | 700mm×420mm×800mm |
Weight | 70kg |
Power Supply | AC220V 50Hz |
Standard Configuration | Main Frame, inlet and outlet water pipe, PC software |
