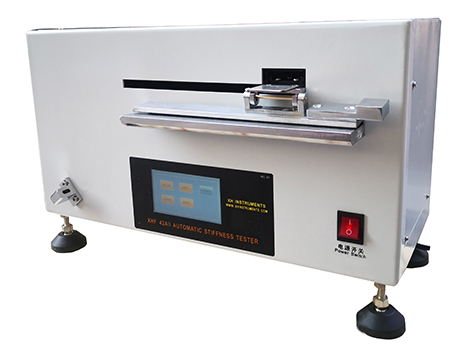

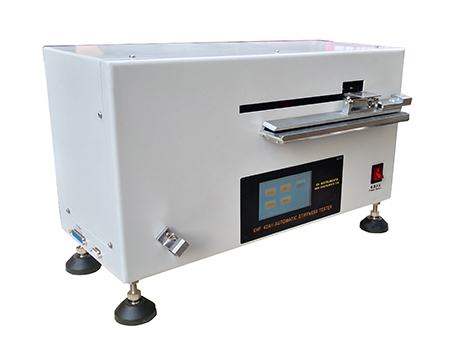

Automatic Fabric Stiffness Tester is used for testing the stiffness of all kinds of woven and knit goods, nonwoven fabrics and
coated fabrics, including cotton, wool, silk, linen and chemical fiber, and also of flexible materials such as paper, leather, film, etc.
ASTM D1388, IS09073-7, BS EN22313
Working Pattern | Micro-Computer Controlled, Infrared Stealth Slant Detecting, Color Touch Screen Operation, Output Test Report from PC, Print Test Report Directly via Stylus Printer |
Measuring Angle | 41.5°, 43°, 45° (Adjustable) |
Platform Size | 40×250mm |
Platen size | 25×250mm |
Extension Measurement Range | 0.5-20.5cm |
Test Accuracy | 0.01 cm |
Test Speed | 0.1-5mm/s (adjustable) |
Test Results | Each specimen bending length in cm, average bending length in cm, average bending stiffness in mN.cm, CV% |
Power Supply | AC220V/50Hz |
Dimension | 470×230×310mm |
Weight | 18Kgs |
