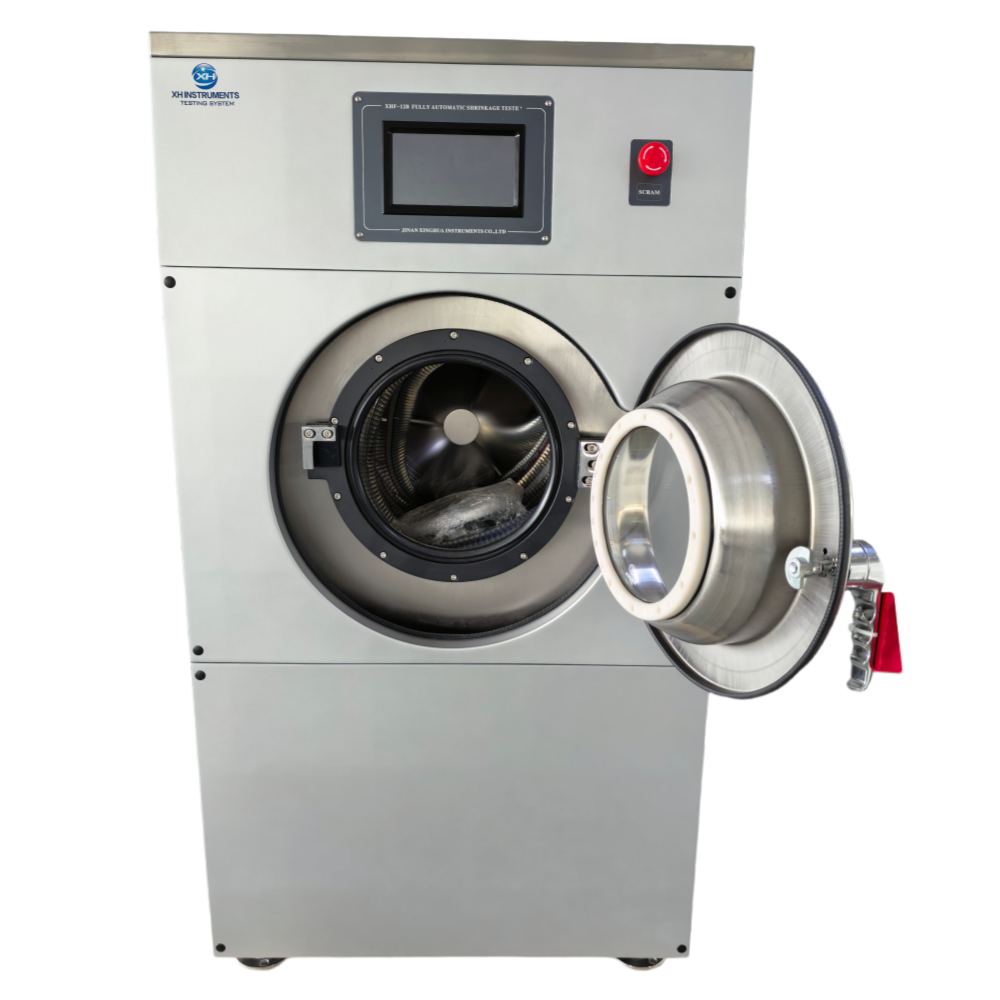

XHF-12 Wascator is used for testing the shrinkage and relaxation after washing of various textiles such as cotton, wool, silk, linen, chemical fiber, knitwear, costume etc. It is fit for the factory and testing center with the long-term test
ISO 6330, BS 4923, EN 25077, JIS L1909, IWSTM31, START TM158
1. All mechanical systems are specially customized by professional household laundry manufacturers, with mature design and high reliability of household appliances.
2. Adopting the patented shock-absorbing technology of "support type" ensures smooth operation and low noise of the instrument; Suspended washing drum, no need to install cement feet.
3. Large color touch screen display operation, English operating systems
4. The shell is made of all stainless steel structure, which is corrosion-resistant, beautiful, and durable;
5. Fully open to self editing program function, capable of storing 50 groups
6. Equipped with the latest standard washing program.
7. Imported high-performance frequency converters and variable frequency motors, smooth high-speed and low-speed conversion, motor temperature rise is low, low noise, and the speed can be freely set
8. Equipped with imported high-precision air pressure sensors for precise control of water level.
9. Repeated washing times: 1-200 times;
10. Adopting imported precision water sealed bearings, it can withstand high-strength operation and ensure the normal use of the equipment under long-term heavy load conditions.
Category | Horizontal roller type, front door feeding mode |
Working Mode | Industrial grade microcontroller program control, built in 23 lastest washing program, user also can freely edit program to meet different standards requirement |
Inner Drum | Diameter : 520±1mm |
Depth: 315±1mm | |
Net Volume | 61L |
Lift Vanes Number | 3 PCS 120° even distribution |
Lift Vane Heights | 53mm±1mm |
Outer Drum Diameter | 554±1mm |
Rotation action | Normal : Clockwise On: (12±0.1)S, Off (3±0.1)S, Anticlockwise On (12±0.1)S, Off (3±0.1)S Mild : On: Clockwise (8±0.1)S, Off (7±0.1)S, Anticlockwise On (8±0.1)S, Off (7±0.1)S Gentle Clockwise On: (3±0.1)S, Off (12±0.1)S, Anticlockwise On: (3±0.1)S, Off (12±0.1)S
Note: ON/OFF time can be freely set within 1-255s |
Drum Speed | Wash: 20-55±1r/min (adjustable, standard is 52±1r/min) Low Spin : 200-1000±20 r/min (adjustable , standard is 500±20 r/min) High Spin: 200-1000±20 r/min (adjustable , standard is 800±20 r/min) |
Water level control | Low level:10cm , Middle Level: 13cm, High level:15cm (0-20cm adjustable) |
Water Supply | (20±2）L/min |
Water Drainage | >30L/min |
Water Temperature Setting Range and Accuracy | Room temperature to 99℃ (accuracy: ±1℃) |
Heating Power | 5.4KW±2% |
Washing Capacity | 5Kgs |
External Dimensions | 800×750×1450mm(L×W×H) |
Weight | 350Kg |
Power Supply | AC 220V, 50Hz, 6KW |
