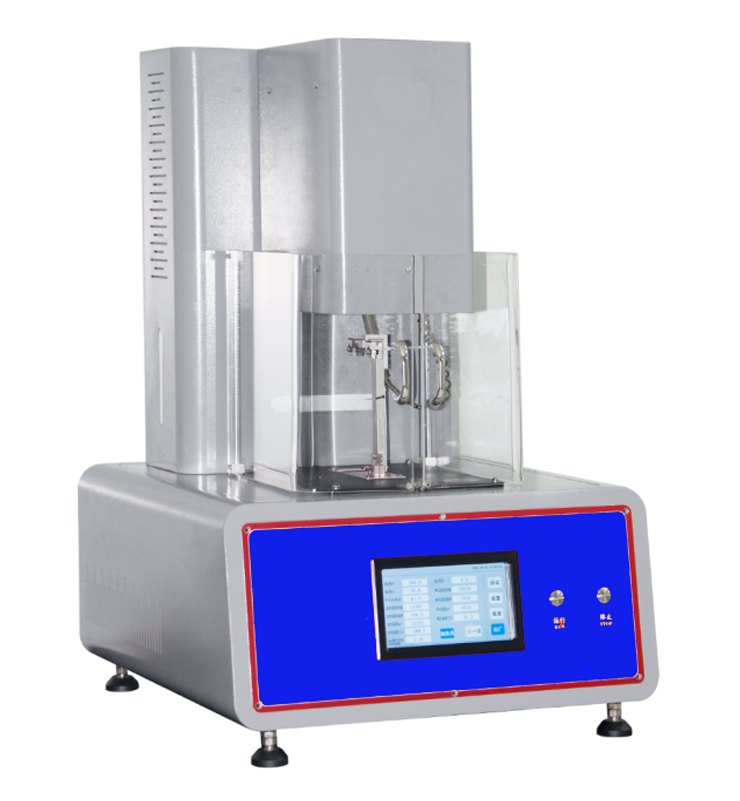

XHS-43C Thermal Shrinkage Tester

Product Description of XHS-43C Thermal Shrinkage Tester

Film Thermal Shrinkage Tester is designed and developed in accordance with ISO 14616 , for determination of shrinking force, contracting force and shrinkage ratio of heat shrinkable films. Shrinking force greater than 0.001N can be detected.

Test Standards of XHS-43C Thermal Shrinkage Tester

ISO 14616

Product Features of XHS-43C Thermal Shrinkage Tester

Advanced laser measurement technology, measures thermal shrinkage ratio of film precisely

High precision load cell supplied by global renowned manufacturer, provides testing accuracy higher than 0.5%FS and better repeatability of test results

Multiple test ranges can be selected to meet various testing requirements

Global renowned brand operating control system guarantees the accuracy of displacement and speed

Three speeds (up to 2 seconds) for loading specimen can be selected

Shrinking force, contracting force and shrinkage ratio are displayed in real time

Provide PC software and use PC to control the test.

Technical Parameter of XHS-43C Thermal Shrinkage Tester

Load Cell Capacity	5 N (Standard) 10 N, 30 N (Optional)
Force Accuracy	Indicated Value ±0.5% (10%-100% of Load Cell Capacity) ±0.05%FS (0%-10% of Load Cell Capacity)
Force Resolution	0.001 N
Displacement Range	0.1 - 95 mm
Displacement Accuracy	±0.1 mm
Shrinkage Ration Range	0.1%-95%
Temperature Range	Room Temperature -210°C
Temperature Variation	±0.2°C
Temperature Accuracy	±0.5°C (Single Point Calibration)
Number of Stations	1 Group (2 pcs)
Specimen Size	110 mm ×15 mm (Standard)
Instrument Dimension	480 mm (L) × 400 mm (W) × 630 mm (H)
Power Supply	26 kg
